Skärande

Magnetic search system that facilitates drilling for electrical boxes in both hard and soft sheet materials, e.g. chipboards, OSB boards, gypsum boards, wooden panels, plywood, etc. The system is adapted to all electrical boxes on the Swedish and Norwegian market. Hole finder with powerful magnet.

Adapters for CARAT diamond drills, with M30x2 thread.

Adapter for hole saw holder Presact QuickChange PS1022Q-01.
Suitable for hole saws PS1010 (14-30 mm).
Supplied in a package of 3 washers and 3 adapters.

Tool and insert in set for radial parting and grooving operations. Supplied with a universal 26mm blade and 10 matching 3mm wide indexable inserts for general use in a wide range of materials including alloy steel, stainless, cast iron and aluminum, titanium and nickel alloys. The blade fits all standard holders.
Contents:
1 pc parting blade XLCFN 2602 J 3.00
10 pc parting cutter LFMX 3.1-.20TNF2:T8330

Tool and insert in set for radial parting and grooving operations. Supplied with a universal 32mm blade and 10 matching 3mm wide inserts for general use in a wide range of materials including alloy steel, stainless, cast iron and aluminum, titanium and nickel alloys. The blade fits all standard holders.
Contents:
1 pc parting blade XLCFN 3202 M 3.00
10 pc parting blades LFMX 3.1-.20TNF2:T8330

Diamond ground carbide drill tip with two cutting edges. Cylindrical bracket. For drilling in brick, tile, marble, concrete, plaster, slate, granite, hollow wall blocks, ceramic tiles, clinker and all kinds of natural stone.

Twist drill made of advanced high-speed steel according to DIN 338. Right-hand cutting twist drill type N. Drill point 118°, diameter tolerance h 8. Roll-rolled spiral with ground chamfer, steam run. For processing alloyed and unalloyed steel up to a tensile strength of 900 N/mm², non-ferrous metals, cast iron and Styrofoam.

High speed steel drill with 1/4" machine bit attachment. For drilling in metal, especially with impact screwdrivers. Precision manufactured from solid metal with oxide coating for penetration of materials with reduced wear. Spiral angle 135°. Manufactured to DIN 338.

Track design: Right, normal spiral, wide tracks.
Tip angle: 118° Special tip geometry (DORMER P.S. Point), provides better positioning accuracy.
Surface treatment: Blank body, TiN-coated cutting part.
Area of ??use: For normal drilling work.
DIN 338 RN / BS 328 / ISO 235.
* = Self-service packed.

Track design: Right, normal spiral.
Point angle: 135° cross point. 118° tip up to 2.9 mm.
Surface treatment: TiN (Titanium nitride). Blank under 2.0 mm.
Area of ??use: For normal drilling work.
DIN 1897.

Groove design: Right, normal spiral.
Tip angle: 118°.
Surface treatment Glossy: < 1 mm, 3/64, No 60.
Surface treatment Steam run: 1 mm, 3/64, No 60 and larger.
Area of ??use: For normal drilling work.
DIN 338 RN / BS 328 / ISO 235.

Track design: Right, large spiral angle.
Tip angle: 135° < 1.5mm 135° > = 1.5 mm. Cross-tipped.
Surface treatment: Steam treated.
Application: For drilling in austenitic stainless acid and heat-resistant steels.
DIN 338 RW / BS 328 / ISO 235.

Groove design: Right, normal spiral.
Tip angle: 118°, 14 mm and larger, pointed.
Surface treatment: Glossy: < ; 1 mm. Steam Run: > = 1 mm.
Area of ??use: For drilling deep holes in steel, cast iron, etc.
DIN 340 RN / BS 328 / ISO 494

Track design: Right, normal spiral.
Tip angle: 118° < 2.3 mm and > 13 mm 135° 2.3 mm - 13 mm. Cross-pointed.
Surface treatment: Glossy: < 1 mm. Steam run > = 1 mm.
Area of ??use: For normal drilling work in steel, stainless steel and cast iron. Also suitable for use in handheld machines.
DIN 1897 RN / BS 328 / ISO 235

(HTML text not available)

Track design: Right, normal spiral.
Tip angle: 118°.
Surface treatment: Steam run.
Area of ??use: For use in light drilling work. Fracture of the bracket can occur if the drill is subjected to lateral forces or too high feed pressure.

Tool material: HSS-E
Slot design: Right
Point angle: 130° for excellent centering
Surface treatment: Bronze
Area of ??use: Extra short drill made of very high quality cobalt-alloyed HSS-E steel. For drilling in stainless steel, but also works in most other materials. DIN 1897.

Twist drill.
Material: HSS/M2
Surface treatment: Glossy, TIN-coated cutting part.
Slot version: Right , normal spiral, wide grooves, with cross tip for accurate centering.
Tip angle: 118°.
Area of ??use: For normal drilling work.
Dimensions according to DIN 338 .

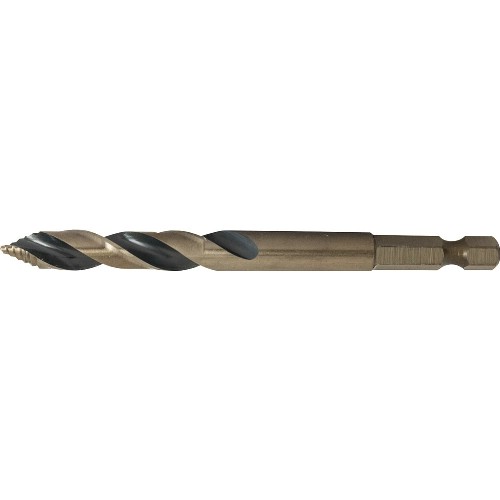

Drill with an optimized step drill tip to avoid pre-drilling. With optimized center and step drill tip to avoid pre-drilling, grips directly when drilling in rounded surfaces such as pipes. Ideal for drilling in ferrous and non-ferrous metal sheets, profiles and pipes, copper, brass, aluminium, stainless steel and plastic. Bit holder.
Material: HSS/M2
Slot design: Right normal spiral
Tip angle: 118°
Area of ??use: For normal drilling work
Dimensions according to DIN 338

Twist drill, extra long, with round attachment.
Material: HSS/M2
Surface treatment: Glossy
Slot design: Right , normal spiral
Tip angle: 118°
Area of ??use: For normal drilling work

Key chuck BOSCH with sds plus adapter

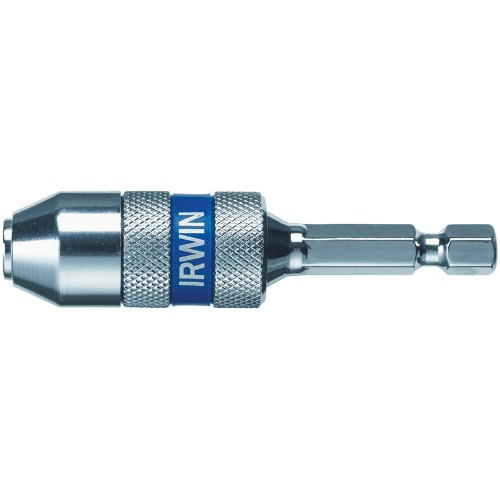

Quick chuck with 1/4" machine bit attachment for screwdrivers with bit attachment.

Metal quick chuck with SDS-plus attachment for hammer drills. Enables the use of drills, countersinks, etc.

Quick chuck specially developed for handheld and stationary drills. As the pressure increases on the drill bit, the quick chuck automatically tightens even more. Can be easily opened by hand, even after a heavy load. Too much load. Quick tool change without a chuck key. Intended for right-hand drive machines only. Not impact drill resistant.

With conical attachment according to SMS 711. For clamping drill chucks with attachment holes according to SS 710 and DIN 238 in machines with MK attachment. Fully hardened and ground. External tool cones with tongue according to Swedish standard SS 100.

With MK cone and tongue. Ground and hardened. DIN 238.
* Abbreviated for quick chuck.

Drill type: A002
Slot design: Right normal spiral.
Tip angle: 118° PS tip.
Surface treatment : Glossy body, TiN-coated tip.
Application: For normal drilling work.

Drill extension for center drill. 1/4" hex bracket. The drill is locked with an allen screw.

Drill extension for center drill. The drill is locked with an allen screw. 1/4" machine bit attachment.

Drill extension for center drill, with Quick-change coupling for quick drill changes. 1/4" machine bit holder.

Drill box with 170 spiral drills, 1.0-10.0 mm, in intervals of 0.5 mm. With cross tip for accurate centering. Plastic storage box.
Material: HSS/4341
Surface treatment: Glossy
Track design: Right, normal spiral
Tip angle: 118°
Area of ??use: For normal drilling work
Dimensions according to DIN 338.
Contents:
1.0-8.0 mm (10 pcs/drill diameter)
8.5-10.0 mm (5 pcs/drill diameter)

Drill sets A095 with drills type A002.
Groove design: Right, normal spiral, wide grooves.
Point angle: 118° special tip geometry (Dormer P.S. Point), gives better positional accuracy.
Surface treatment: Glossy body, TiN-coated cutting part.
Area of ??use: For normal drilling work.
DIN 338 RN / BS 328 / ISO 235

High-speed steel drill for drilling in steel and metal.
Hard plastic drill cartridge.

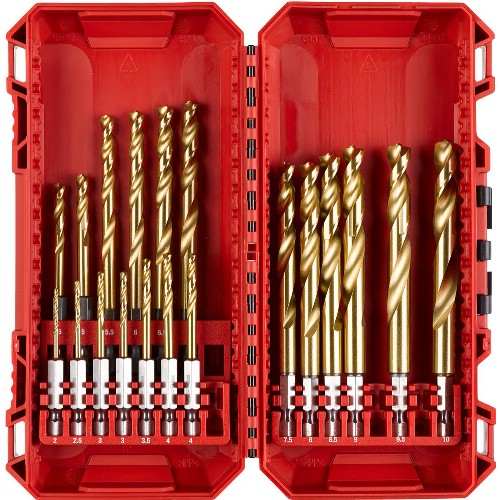

Drill set in 19 parts. Impact-resistant drills with 1/4" machine bit attachment, optimized for impact screwdrivers. 135° angle and four cutting edges. Titanium coating distributes the heat better and makes the drills suitable for high speed. For drilling in steel, metals and sheet metal profiles. Supplied in a practical plastic box.

Drill set in 19 parts. Twist drills 1.0-10.0 mm, in intervals of 0.5 mm. Plastic storage box with snap lock.
Material: HSS/M2.
Surface treatment: TIN coated
Track design: Right normal spiral.
Tip angle: 118°
Area of ??use: For normal drilling work.
Dimensions according to DIN 338

Centering aid for ET drills. For dimensions Ø 5, 6, 8, 10, 12 mm.

Center drill for drilling at high speed in wood. Fast drilling thanks to Bosch Tip Technology and self-tapping thread for smooth drilling at high speed. Smart, wavy shape for quick chip removal. 1/4" hex shank for use with drill chuck and hex bit chuck.

Centering drill for Bosch hole saw holder Power Change Plus (with blue sleeve). 1/4" machine bit attachment for quick change of drill bits in the holder. Intended for drilling in stainless steel sheet, metal pipes, metal profiles, wood with metal and fiber plastics GRP, CFK.

Centering drill for Bosch hole saw holder Power Change (with black sleeve). 1/4" machine bit attachment for quick change of drill bits in the holder.

Centering drill for Bosch hole saw holder Power Change Plus (with blue sleeve). 1/4" machine bit attachment for quick change of drill bits in the holder.
